CLASS XII - NEW IP SAMPLE PAPER (SET - 2) - 2020-21

 CLASS XII

IP SAMPLE PAPER (065) (SET - 2)

SESSION - 2020-21

Max Marks: 70                                                                                                           Time: 3 Hrs.

General Instructions:

1. This question paper contains two parts A and B. Each part is compulsory.
2. Both Part A and Part B have choices.
3. Part-A has 2 sections:
1. Section – I is short answer questions, to be answered in one word or one line.
2. Section – II has two case studies questions. Each case study has 4 case-based subparts. An examinee is to attempt any 4 out of the 5 subparts.
4. Part – B is Descriptive Paper.
5. Part – B has three sections:
1. Section – I is short questions of 2 marks each in which two questions have internal options.
2. Section – II is long answer questions of 3 marks each is which two questions have internal options.
3. Section – III is very long questions of 5 marks each in which one question has internal option.

Part – A

Section – I Attempt any 15 questions from 1 to 21

1	State whether True or False: Copyright is the right of the creator of creative/artistic work. Digital footprints is save ot make all one posts public on social media.
Ans	True False
2	Fill in the blanks: A ________ is a summarization tool for discrete or continuous data. Quartile Histogram Mean Median

Ans	Histogram
3	Write the output of the following SQL command. SELECT MONTHNAME(‘2021-02-03’)
Ans	February
4	Which of the following is not a descriptive statics function? Count() Add() Sum() Max()
Ans	Add()

5

Given the following Series A1 and A2:                  A1                                                                                A2 A             10 B             15 C             50 D             70   A             90 B             40 C             78 D             92             Write the command to find the sum of Series A1 and A2

1

Ans	print(A1 + A2)
6	Which argument must be set with plotting functions for legend() to display the legends? Data Label Name Sequence
Ans	Label
7	Unauthorized monitoring of other people’s communications is called _____________.
Ans	Eavesdropping
8	In a DataFrame, Axis = 0 represents the __________ elements.
Ans	Row
9	Which portion of the URL below records the directory or folder of the desired resource? http://www.somestore.com/firstfloor/shoes.htm http firstfloor shoes.htm www.somestore.com
Ans	Firstfloor
10	The first page that you normally view at a web site is its: Home page Master page First Page Banner page
Ans	Home page
11	For Web pages where the information is changed frequently, for example, stock prices, weather information which out of the following options would you advise? Static web page Dynamic web page Justify your answer.
Ans	Dynamic web page
12	Which of the following is not an aggregate function? Avg Sum With Min
Ans	With

13	Any fraudulent business practice that extracts money from an unsuspecting, ignorant person is called a _____________.
Ans	Scam
14	___________ is a popular data-science library of Python.
Ans	Pandas
15	Which amongst the following is not an example of browser? Firefo Avast Edge Chrome
Ans	Avast
16	Website store the browsing activity through _________.
Ans	Cookies
17	According to a survey, one of the major Asian country generates approximately about 2 million tones of electronic waste per year. Only 1.5% of the total e-waste gets recycled. Suggest a method to manage e-waste.
Ans	Buy environmentally friendly electronic Donate used electronics to social programs Reuse, refurbish electronics Recycling e-waste Any other for the correct answer to considered
18	To sort the rows of the result table, the __________ clause is specified.
Ans	ORDER BY
19	Write the SQL command that will display the current time and date.
Ans	SELECT NOW();
20	The address of location of the document on the world wide web is called its ________.
Ans	URL
21	The original code written by programmers for a software is known as ____________.
Ans	Source code

Section – II Both the case study based questions (22 & 23) are compulsory. Attempt any four sub parts from each question. Each sub question carries 1 mark.

22. Consider the following DataFrame df and answer any four questions from (i) to (v).   City   Maxtemp   Mintemp   Rainfall   Delhi 40 32 24.1 Bengaluru 31 25 36.2 Chennai 35 27 40.8 Mumbai 29 21 35.2 Kolkata 39 23 41.8

(i)Write down the command that will give the following output. City                 Mumbai Maxtemp         40 Mintemp          32 Rainfall            41.8 dtype: object   print(df.max() print(df.max()) print(df.max(axis=1)) print(df.max, axis=1)

b. print(df.max())

(ii) Write down the command that will give the following output. City                     DelhiBengaluruChennaiMumbaiKolkata Maxtemp                                      174 Mintemp                                       128 Rainfall                                          178.1 dtype: object   print(df.sum()) print(df.sum(axis=1)) print(df.add()) print(df.sum()

print(df.sum())

(iii)	Which of the following command will display the column labels of the DataFrame? print(df.columns()) print(df.column()) print(df.columns) print(df.column)
Ans	c. print(df.columns
(iv)	Which of the following statements will give the exact number of values in each column of the dataframe? print(df.count()) print(df.count(0)) print(df.count) print(df.count(axis=’index’))   Choose the correct option: both (1) and (2) only (2) (1), (2) and (3) (1), (2) and (4)
Ans	a. both (1) and (2)
(v)	Add a new column, the values of Moderate [55.6,45.8,33.7,67.2,65.3], to DataFrame. Identify the correct command. df.column = [55.6,45.8,33.7,67.2,65.3] df[‘Moderate’] = [55.6,45.8,33.7,67.2,65.3] df([‘Moderate] = [55.6,45.8,33.7,67.2,65.3]) df.[‘Moderate] = [55.6,45.8,33.7,67.2,65.3]
Ans	b. df[‘Moderate] = [55.6,45.8,33.7,67.2,65.3]

23

Consider the table STUDENT given below: RollNo Name Class DOB Gender City Marks 1 Anand XI 6/6/97 M Agra 430 2 Chetan XII 7/5/94 M Mumbai 460 3 Geet XI 6/5/97 F Agra 470 4 Preeti XII 8/8/95 F Mumbai 492 5 Saniyal XII 8/10/95 M Delhi 360 6 Maakhiy XI 12/12/94 F Dubai 256 7 Neha X 8/12/95 F Moscow 324 8 Nishant X 12/6/95 M Moscow 429

(i)	Write the command that will give the output: Name Anand Chetan Geet Preeti
Ans	SELECT NAME FORM STUDENT WHERE CITY = ‘AGRA’ OR CITY = ‘MUMBAI’;                                                                 OR SELECT NAME FROM STUDENT WHERE CITY IN(‘AGRA’, ‘MUMBAI’);
(ii)	Display the output of the following command? SELECT * FROM STUDENT WHERE GENDER = ‘F’ ORDER BY MARKS;

Ans	RollNo Name Class DOB Gender City Marks 6 Maakhiy XI 12/12/94 F Dubai 256 7 Neha X 8/12/95 F Moscow 324 3 Geet XI 6/5/97 F Agra 470 4 Preeti XII 8/8/95 F Mumbai 492

(iii)	Prachi has given the following command to obtain the highest marks   SELECT MAX(MARKS) FROM STUDENT WHERE GROUP BY CLASS;   But she is not getting the desired result. Help her by writing the correct command.
Ans	SELECT CLASS,  MAX(MARKS) FROM STUDENT GROUP BY CLASS;
(iv)	State the command to display the average marks scored by students of each gender who are in class XI? SELECT GENDER, AVG(MARKS) FROM STUDENT WHERE CLASS =’XI’ GROUP BY GENDER; SELECT GENDER, AVG(MARKS) FROM STUDENT GROUP BY GENDER WHERE CLASS = ‘XI’; SELECT GENDER, AVG(MARKS) GROUP BY GENDER FROM STUDENT HAVING CLASS = ‘XI’; SELECT GENDER, AVG(MARKS) FROM STUDENT GROUP BY GENDER HAVING CLASS – ‘XI’;   Choose the correct option: Both (ii) and (iii) Both (ii) and (iv) Both (i) and (iii) Only (iii)
Ans	Both (ii) and (iv) – option b correct

(v)	Help Ritesh to write the command to display the name of the youngest student?	1
Ans	SELECT NAME, MAX(DOB) FROM STUDENT;

	Part – B Section – I
24	Write the output of the following code:   import numpy as np array1 = np.array( [10,12,14,16,18,20,22] ) array2 = np.array( [10, 12, 15, 16, 12,20,12] ) a = (np.where(array1 = = array2)) print(array1[a])	2
Ans	[10, 12, 16, 20]

25	State any two differences between single row functions and multiple row functions. OR What is the difference between order by and group by clause when used along with the select statement? Explain with example	2
Ans	Differences between single row functions and multiple row function: (i)                 Single row functions work on one row only whereas multiple row functions group rows. (ii)               Single row functions return one output per row whereas multiple row functions return only one output for a specified group of rows.   OR The order by clause is used to show the contents of a table/relation in a sorted manner with respect to the column mentioned after the order by clause. The contents of the column can be arranged in ascending or descending order.   The group by clause is used to group rows in a given column and then apply an aggregate function eg. Max(), min() etc. on the entire group. 26 Write a query to remove both leading and trailing x characters from string ‘xxxxBar Onexxxxx’   2 Ans SELECT TRIM(BOTH ‘X’ FROM ‘XXXXBAR ONE XXXX’) ;     27 Consider the following Series object, S-amt   Table 350 Chair 200 Sofa 800 Stool 150 (i)                  Write the command which will display the name of the furniture having rent>250. (ii)                Write the command to name of the series as Furniture.   2 Ans (i) print (S_amt [S_amt > 250]) (ii) S_amt.name = ‘Furniture’

28	Shanya khanna is using a table Employee. It has the following columns:                   Admno, Name, Agg, Stream [Column Agg contains Aggregate marks] She wants to display highest Agg obtained in each Stream. She wrote the following statement: SELECT STREAM, MAX(AGG) FROM EMPLOYEE ; But she did not get the desired result. Rewrite the above query with necessary changes to help her get the desired output.	2
Ans	SELECT STREAM, MAX(AGG) FROM EMPLOYEE GROUP BY STREAM ;
29	Consider the following SQL string: “Preoccupied”   Write the commands to display: “occupied” “cup”                                              OR Considering the same string “Preoccupied” Write the SQL command to display:   The position of the substring ‘cup’ in the string “Preoccupied” The first 4 letters of the string	2

Ans

(a) SELECT SUBSTR(“PREOCCUPIED”, 4) ;                      OR SELECT SUBSTRING(“PREOCCUPIED”, 4) ;                      OR SELECT MID(“PREOCCUPIED”, 4) ;                      OR SELECT RIGHT(“PREOCCUPIED”, 8) ;   (b) SELECT SUBSTR(“PREOCCUPIED”, 6, 3) ; OR SELECT SUBSTRING (“PREOCCUPIED”, 6, 3) ; OR SELECT MID(“PREOCCUPIED”, 6, 3 );   OR   SELECT INSTR (‘PREOCCUPIED’, ‘CUP’) ; SELECT LEFT (‘PREOCCUPIED’, 4) ;

30	Consider the following DataFrame, sales   Name Product Target Sales zoneA Purv Oven 56000 58000 zoneB Paschim AC 70000 68000 zoneC Kendriya AC 75000 78000 zoneD Dakshin Oven 60000 61000   Write commands to: Add new column ‘Percentage’ to the Dataframe. Add a new row with values ( Uttar, AC, 72000, 74000)	2
Ans	sales[‘Percentage’] =[55.6, 72.5, 85.3, 55.6] sales.loc[zone] = [‘Uttar’, ‘AC’, 72000, 74000]

31	Expend the following terms related to Computer Networks: IRC SMTP BCC VoIP	2
Ans	Internet Relay Chat Simple Mail Transfer Protocol Blind Carbon Copy Voice over Internet Protocol

32	List any two health hazards related to excessive use of Technology.	2
Ans	The continuous use of devices like Smartphoes, computer desktop, laptops, head phones etc. cause a lot of health hazards if not addressed. These are: Impact on bones and joints: wrong posture or long hours of sitting in an uncomfortable position can cause muscle or bone injury. Impact on hearing: using headphones or earphones for a prolonged time and on high volume can cause hearing problems and in severe cases hearing impairments. Impact on eyes: This is the most common form of health hazard as prolonged hours of screen time can lead to extreme strain in the eyes. Sleep problem: Bright light from computer devices block a hormone called melatonin which us sleep. Thus we can experience sleep disorders leading to short sleep cycles.

33	Nivedita has recently shifted to new city and new school. She does not know many people in her new city and school. But all of a sudden, someone is posting negative, demeaning comments on her social networking profile, school site’s forum etc. She is also getting repeated mails from unknown people. Every time she goes online, she finds someone chasing her online. What is this happening to Nivedita? What action should she taken to stop them?	2
Ans	Nivedita has become a victim of cyber bullying and cyber stalking. She must immediately bring it into the notice of her parents and school authorities. And she must report this cyber crime to local police with the help of her parents.

	Section – II
34	Consider two objects x and y. x is a list whereas y is a Series. Both have values 20, 40, 90, 110. What will be the output of the following two statements considering that the above objects have been created already. print (x * 2) print (y * 2)	3
Ans	will give the output as [20, 40, 90, 110, 20, 40, 90, 110]   0           40 1           80 2          180 3          220

35

Describe the following security issue and suggest a way of protecting against it. Pharming Phishing Spyware   OR What do you understand by Net Etiquettes? Explain any two such etiquettes.

3

Ans

Security Issue Description of Security Issue Method of Protection Pharming It is actually a code installed on the hard drive of a user’s computer or on actual web server ; code redirects user to a bogus/fake website without user knowing. Use filter to authenticate website User should be alert and look for pharming clues which indicate being directed to a bogus site. Phishing In phishing, creator sends legitimate-looking (fake) email in the hope of gaining personal/financial information ; fake email replicates a well known company e.g., a bank. ISPs can filter/block out phishing emails. User should be aware of opening links in emails. Spyware It is a type of software that gathers information by monitoring key presses on a user’s keyboard or activity and relays the information back to person who sent the spyware Use down boxes. User should be alert and look for clues when using their computers.   OR Net Ettiquets refers to the proper manners and behavior we need to exhibit while being online. These include: No copyright violation: we should not use copyrighted materials without the permission of the creator or owner. We should give proper credit to owner/creators of open source content when using them. Avoid cyber bulling: Avoid any insulting, degrading or intimidating online behavior like repeated posting of rumours, giving threats online, posting the victim’s personal information, or comment aimed to publicly ridicule a victim.   Or any other relevant answer.

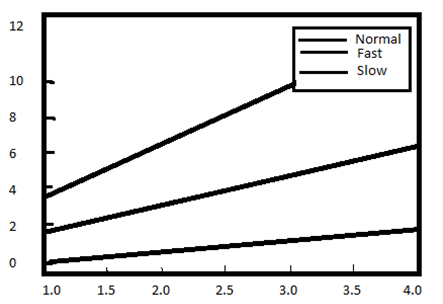

36. Write a code to plot the speed of a passenger train as shown in the figure given below:    3

                                                                        OR

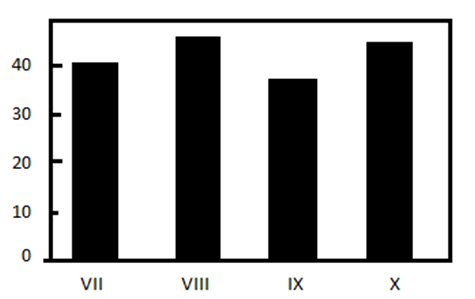

Draw the following bar graph representing the number of students in each class.

Ans

import matplotlib.pyplot as plt import numpy as np x = np.arange(1, 5) plt.plot( x, x* 1.5, label = ‘Normal’) plt.plot( x, x* 3.0, label = ‘Fast’) plt.plot( x, x/3.0, label = ‘Slow’) plt.legend() plt.show()   OR   import matplotlib.pyplot as plt Classes = [‘VII’, ‘VIII’, ‘IX’, ‘X’] Students = [40, 45, 35, 44] plt.bar(Classes, Students) plt.show()

37

Consider the following table ‘GAMES’. Table : GAMES GCode GameName Type Number PrizeMoney ScheduleDate 101 Carrom Board Indoor 2 5000 23-Jan-2004 102 Badminton Outdoor 2 12000 12-Dec-2003 103 Table Tennis Indoor 4 8000 14-Feb-2004 105 Chess Indoor 2 9000 01-Jan-2004 108 Lawn Tennis Outdoor 4 25000 10-Mar-2004   Write SQL commands to: To display the name of all GAMES with their GCodes. To display the content of the GAMES table in ascending order of ScheduleDate. To display sum of PrizeMoney for each type of GAMES.

3

Ans

SELECT GAMENAME, GCODE FROM GAMES ; SELECT *  FROM GAMES ORDER BY SCHEDULEDATE ; SELECT SUM(PRIZEMONEY), TYPE FROM GAMES GROUP BY TYPE ;

	Section – III
38	Write a program in Python Pandas to create the following DataFrame batsman from a Dictionary: B_No Name Score1 Score2 Score3 1 Sachin Tendulkar 90 80 75 2 MS Dhoni 70 85 95 3 Rishabh Pant 65 56 78 4 Hardik Pandya 55 78 67   Perform the following operations on the DataFrame: Add all the scores of a batsman and assign to column “Total”. Display the highest score in Score1, Score2 and Score3 of the DataFrame. Display the DataFrame.	5

Ans

import pandas as pd d1 = {B_No’ : [‘Sachin Tendulkar’, ‘MS Dhoni’, ‘Rishabh Pant’, Hardik Pandya’],           ‘Score1’ : [90, 70, 65, 55],            ‘Score2’ : [80, 85, 56, 78],             ‘Score3’ : [75, 95, 78, 67] }   df = pd. DataFrame(d1) print(df) df[‘Total’] = df[‘Score1] + df[‘Score2’] + df[‘Score3]   print (“Maximum Scores are:”, max(df[‘Score1’], max(df[‘Score2’, max(df[‘Score3] ) )

39

Write the SQL functions which will perform the following operations: To display the name of the month of the current date. To remove spaces from the beginning and end of a string.  “                Panorama     “. To display the name of the day eg. Friday or Saturday from your date of birth, dob. To display the starting position of your first name(fname) from your whole name(name). To compute the remainder of division between two numbers, n1 and n2. OR   In a Database Company, there are two tables given below:                                  Table:SALES                                                                            Table: LOCATION SALESMANID NAME SALES LOCATION   LOCATIONID LOCATIONNAME S1 ANITA SINGH ARORA 250000 102 101 Delhi S2 Y P SINGH 1300000 101 102 Mumbai S3 TINA JAISWAL 1400000 103 103 Kolkata S4 GURDEEP SINGH 1250000 102 104 Chennai S5 SIMI FAIZAL 1450000 103     Write SQL queries for the following: To dispay SalesmanID, names of salesman, LocationID with corresponding location names. To display names of salesman, sales and corresponding location names who have achieved Sales more than 1300000. To display names of those salesman who have ‘SINGH’ in their names. Identify Primary key in the table SALES. Give reason for your choice. Write SQL command to change the LocationID to 104 of the Salesman with ID as S3 in the table ‘SALES’.   Ans: SELECT MONTHNAME(DATE(NOW()) TRIM (“          Panaroma         “) DAYNAME(DATE(DOB)) INSTR(NAME, FNAME) MOD(N1,N2)   OR SELECT SALESMANID, NAME, LOCATIONID, LOCATIONNAME FROM SALES S, LOCATION L WHERE S.LOCATIONID = L.LOCATIONID ; SELECT NAME, SALES, LOCATIONNAME FROM SALES S, LOCATION L WHERE S. LOCATIONID = L.LOCATIONID AND SALES >1300000 ; SELECT NAME FROM SALES WHERE NAME LIKE ‘%SINGH%’ ; Primary key : SALESMANID Reason: It uniquely identifies all Rows in the table and does not contain empty/zero or null values. UPDATE SALES SET LOCATIONID = 104 WHERE SALESMANID = ‘S3’ ;   40. A company in Mega Enterprises has 4 wings of buildings as shown in the diagram:              5 Center to center distances between various Buildings: W3 to W1 – 50 m W1 to W2 – 60 m W2 to W4 – 25 m W4 to W3 – 170 m W3 to W2 – 125 m W1 to W4 – 90 m Number of computers in each of the wings: W1 – 150 W2 – 15 W3 – 15 W4 – 25 Computers in each wing are networked but wings are not networked. The company has now decided to connect the wings also. i.                     Suggest a most suitable cable layout for the above connections. ii.                   Suggest the most appropriate topology of the connection between the wings. iii.                  The company wants internet accessibility I all the wings. Suggest a suitable technology. iv.                 Suggest the placement of the following devices with justification if the company wants minimized network traffic a.       Repeater b.      Hub/Switch v.                   The company is planning to link its head office situated in New Delhi with the office in hilly areas. Suggest a way to connect it economically. Ans i.                    Most suitable layout according the distance is:                   ii.                  Star Topology iii.                Broadband iv.                 a. Not required, Repeaters may be skipped as per above layout (because distance is less than 100 m) b.  In every wings   v.  Radio Waves

5
